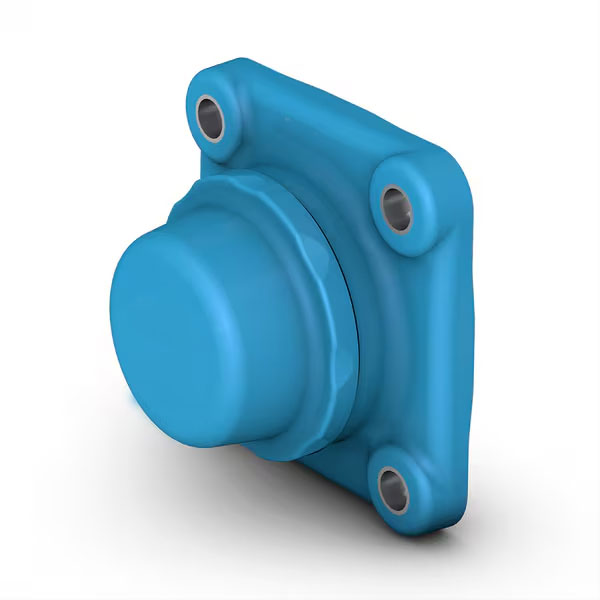

d
|
40 mm |
Bore diameter |
d1
|
≈ 51.8 mm |
Outer diameter of inner ring |
A
|
38 mm |
Width of housing |
A1
|
17 mm |
Flange width |
A5
|
67.9 mm |
Standout of end cover |
B
|
40.7 mm |
Width of inner ring |
B1
|
40.7 mm |
Overall bearing width |
B4
|
10 mm |

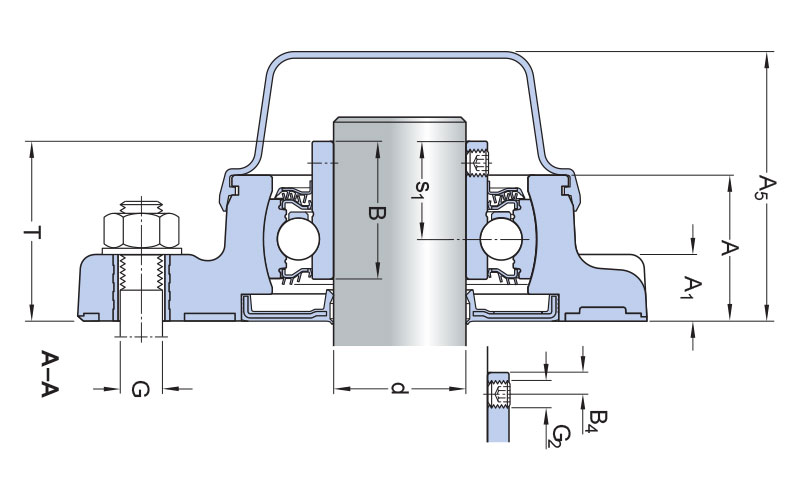

Distance from locking device side face to thread centre |
Db
|
93 mm |
Top external diameter |
Dc
|
88 mm |
Diameter of housing centering recess |
Ha
|
6 mm |
Depth of housing centering recess |
J
|
102 mm |

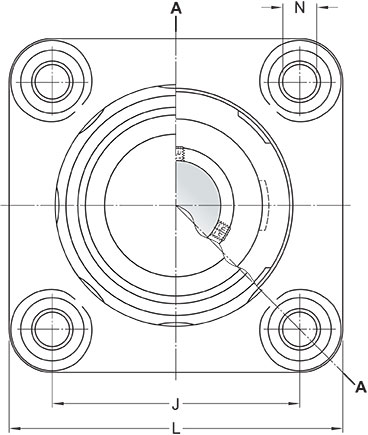

Centre distance between bolt holes |
L
|
135 mm |
Overall length |
N
|
14.2 mm |
Diameter of attachment bolt hole |
s1
|
30.2 mm |
Distance from locking device side face to raceway centre |
T
|
50.9 mm |
Overall width |
