Main Dimensions & Performance Data

d

 571.5 mm

D

 812.8 mm

B

 155.58 mm

Cr

 1180 N

Cor

 669 N

Weight

 255.86 g

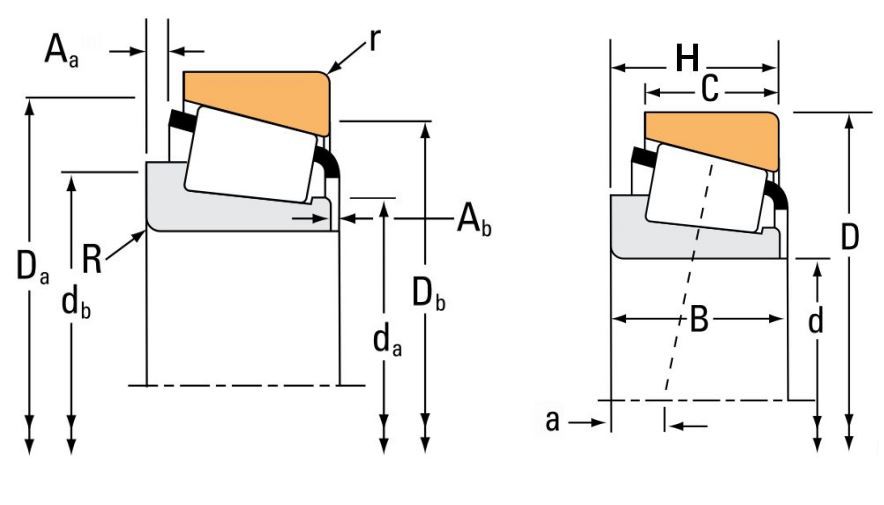

Mounting dimensions

d 571.5 mm
D 812.8 mm
H 155.58 mm
C1 4530 KN
e 0.33
Y 1.8
C90 1180 KN
Ca90 669 KN
K 1.76
Co 10600 KN
M278749 cone
278710 cup
B 6.125 inch
C 4.75 inch
a -0.45 inch
R 0.25 inch
da 23.98 inch
db 24.21 inch
R 0.25 inch
Da 30.46 inch
Db 29.76 inch
Aa 0.59 inch
Ab 0.23 inch
G1 12425.1
G2 669.4
Cg 0.299
m 255.86 KG
