d(mm)
|
80 mm
|
D(mm)
|
125 mm
|
B(mm)
|
22 mm
|
Basic Dynamic Load Rating C (kN)
|
99 kN
|
Basic Static Load Rating Co (kN)
|
127 kN
|
Fatigue Load Limit Pu (kN)
|
16.3 kN
|
Reference Speed (r/min)
|
6000 r/min
|
Limiting Speed (r/min)
|
6000 r/min
|
Weight (kg)
|
1.04 kg
|

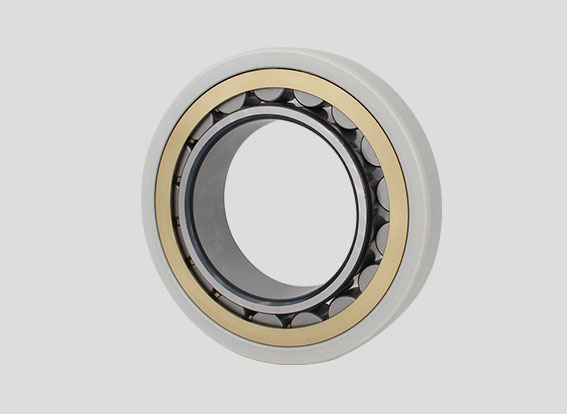

Model
|
NU 1016 ECM/C3VL0241
|
d₁*(mm)
|
80 mm
|
F(mm)
|
136 mm
|
D₂*(mm)
|
95 mm
|
Min r₃₄ (mm)
|
2.1 mm
|
Max s (mm)
|
2.1 mm
|
Min dₐ (mm)
|
1.8 mm
|
Max dₐ (mm)
|
87 mm
|
Min db (mm)
|
87 mm
|
Min Dₐ (mm)
|
97 mm
|
Max Dₐ (mm)
|
141 mm
|
Max rₐ (mm)
|
148 mm
|
Max rb (mm)
|
2 mm
|
kᵣ
|
2
|
f₀
|
0.15
|
